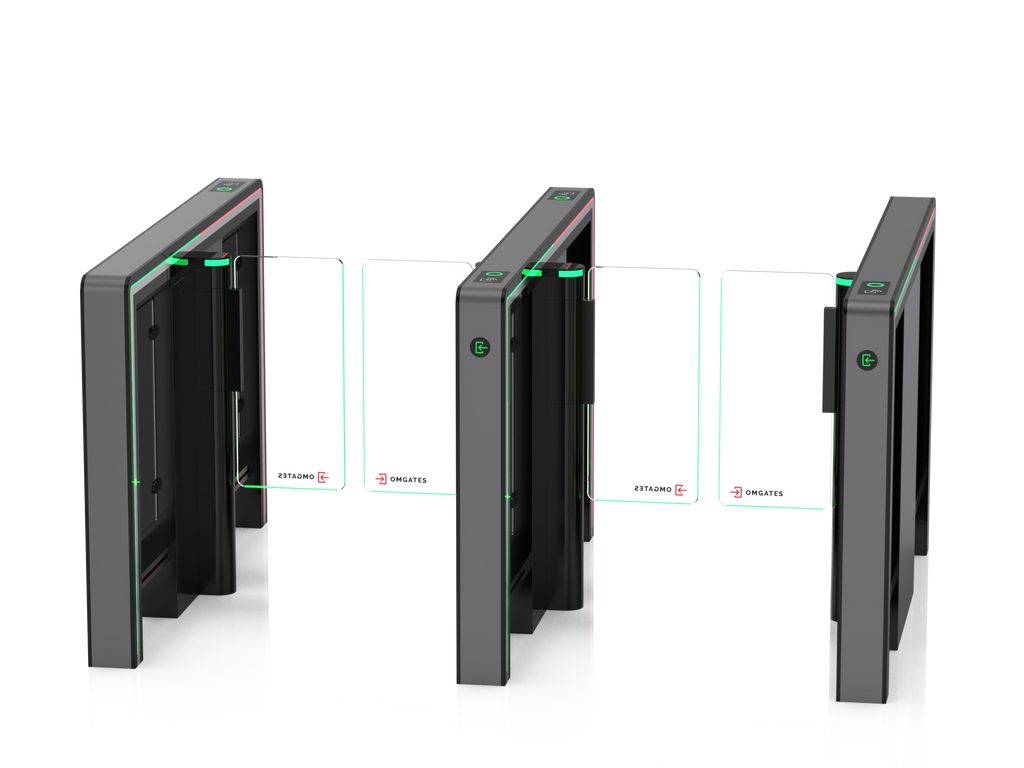

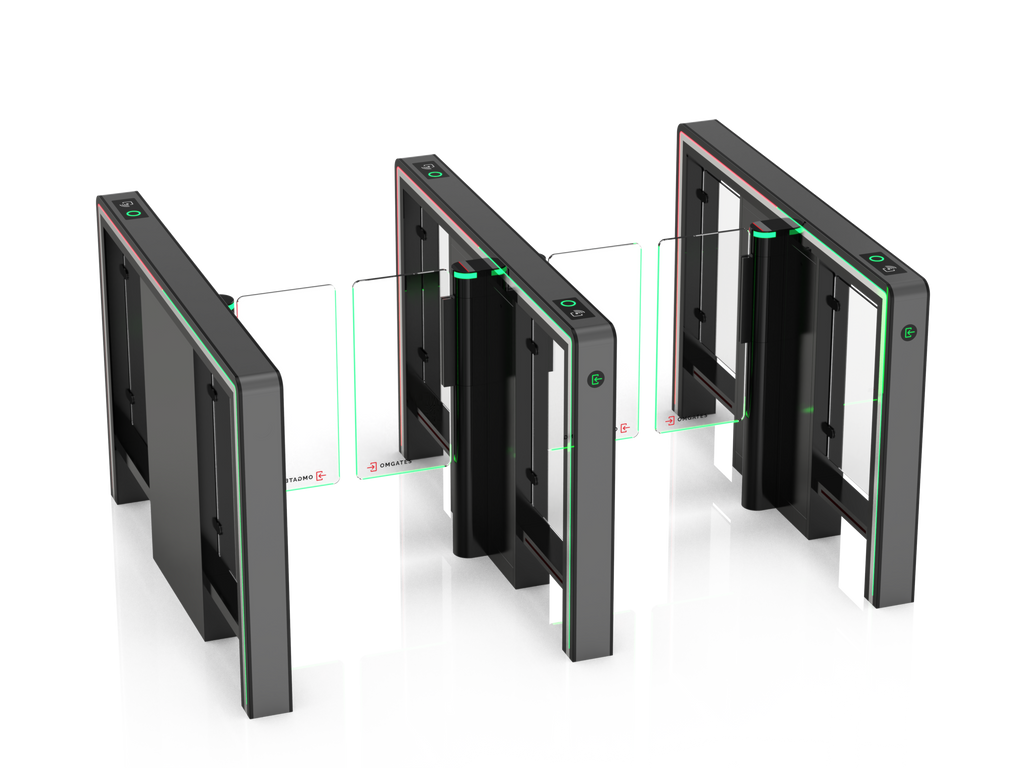

Vega Speed Gate | Double Lane
The Vega Double-Lane Speed Gate by OMGates delivers high-performance, bi-directional access control for busy, high-security environments. Designed with elegance and precision, this dual-lane system features synchronised movement, advanced infrared sensor arrays, and sleek aluminium alloy housing, making it ideal for managing larger foot traffic zones with style and reliability.
Perfect for corporate buildings, airports, transport hubs, and public institutions, the Vega speed gate ensures fast, secure, and touch-free pedestrian flow while blending seamlessly into modern architectural spaces.
Backed by a 5-year manufacturer guarantee, the Vega Double-Lane Speed Gate offers the perfect combination of security, efficiency, and refined aesthetics.
Key Features:
- Dual-lane setup for high-capacity throughput with independent or synchronised control
- 66 infrared sensors (33 per lane) for enhanced tailgating and intrusion detection
- Customisable passage widths from 600 mm to 1200 mm, with options for high glass and anti-climb arms
- Premium design with anodised aluminium alloy finish and clear Plexiglas swing arms
- Integrated multi-colour LED indicators for intuitive access guidance (blue: standby, green: entry, red: denied)
- Built-in control boards for easier installation and reduced footprint
- Emergency override – arms open automatically in case of power failure or evacuation
- Up to 110 people per minute throughput across two lanes (55 p/min per lane)
Technical Specifications:
- Material: Aluminium alloy or stainless steel 304/316
- Arm Material: Transparent Plexiglas
- Dimensions (each module): 1500 × 126 × 980 mm
- Weight: 80 kg per core unit
- Passage Width: 600 mm standard (up to 1200 mm optional)
- Arm Height: 900 mm standard, up to 1800 mm available
- Direction: Single or bi-directional per lane
- MCBF: 15 million cycles
- Power Supply: AC220V/110V, 50/60Hz | 24V DC
- Power Consumption: 40W
- Operating Temp: -20°C to +75°C
- Humidity: 0–95% (non-condensing)
- Ingress Protection: IP65
- Communication: RS485, dry contact, relay signal

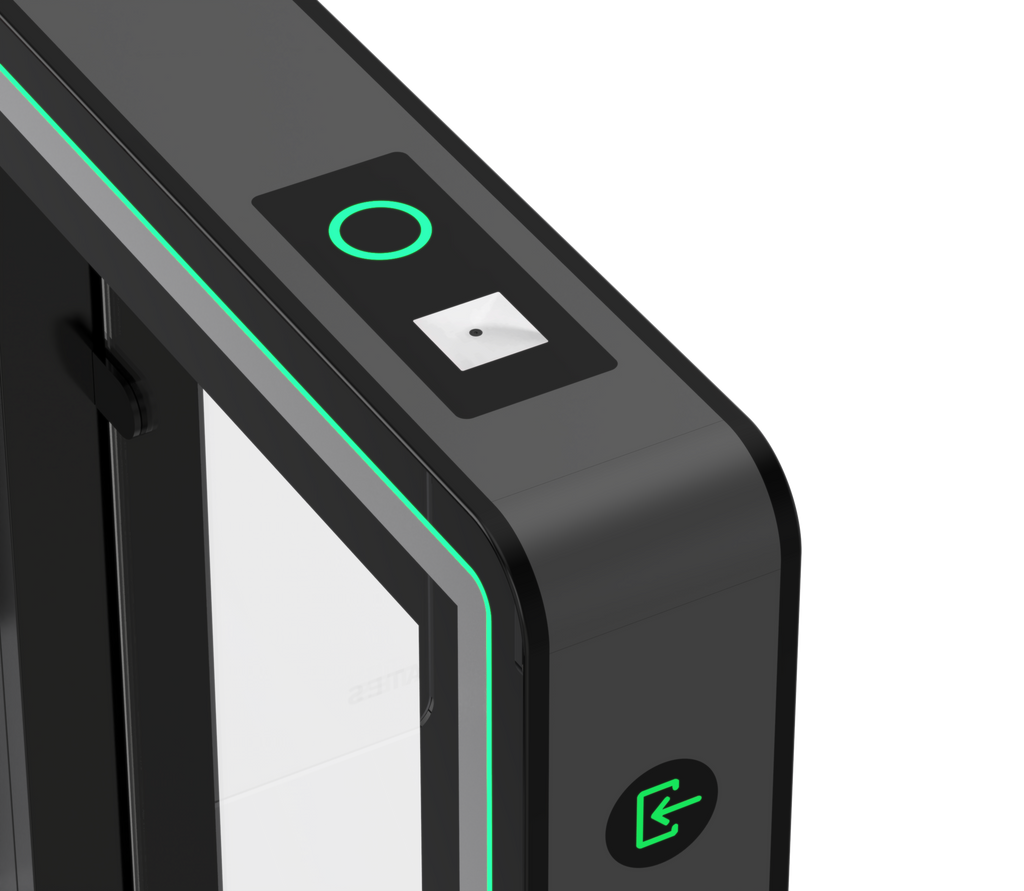

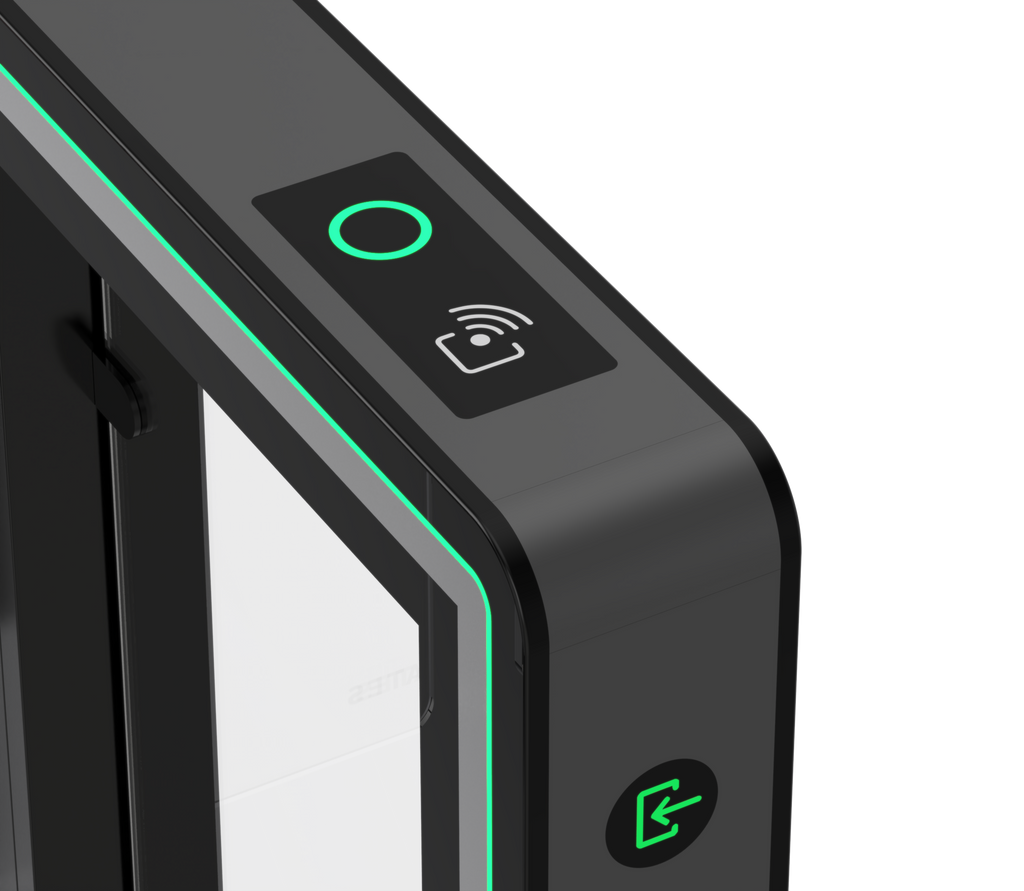

- Reader Integration: Built-in card reader mounting beneath the top panel
- Installation: Suitable for indoor and sheltered outdoor use
