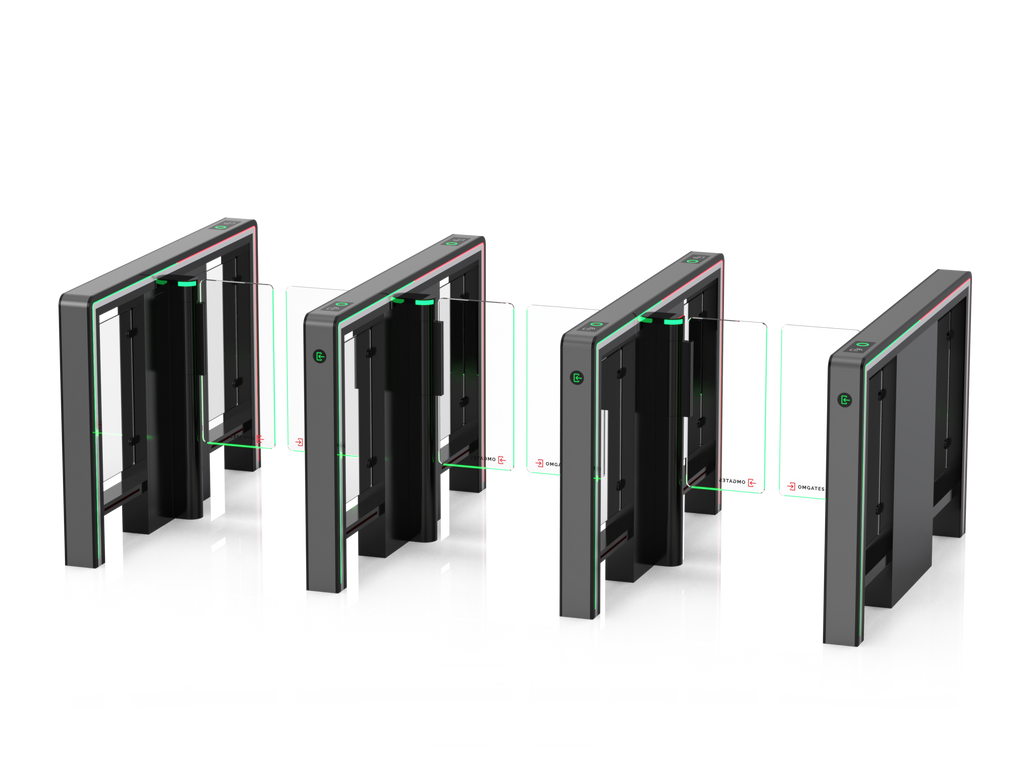

Vega Speed Gate | Triple Lane
The Vega Triple-Lane Speed Gate by OMGates is a premium access control solution built for ultra-high footfall environments where speed, security, and sophistication are essential. Featuring three independently controlled lanes, sleek aluminium alloy housing, and advanced infrared detection, the Vega system ensures efficient and secure throughput without compromising on aesthetics.
Ideal for transport terminals, stadiums, government buildings, and large corporate entrances, the Vega triple-lane configuration allows for simultaneous bi-directional access, reducing bottlenecks and streamlining crowd flow.
Backed by a 5-year guarantee, the Vega Triple-Lane Speed Gate is engineered for durability, high-speed performance, and a polished user experience across large-scale access points.
Key Features:
- Triple-lane access control for managing large volumes of pedestrian traffic
- 99 pairs of infrared sensors (33 per lane) for precise tailgating, intrusion, and anti-reverse detection
- Customisable lane widths: 600 mm standard, expandable up to 1200 mm
- Stylish housing in anodised aluminium alloy or stainless steel with clear Plexiglas arms
- Integrated RGB LED indicators for intuitive access guidance (blue: standby, green: pass, red: denied)
- Internal control boards simplify installation and reduce visual clutter
- Emergency override function – arms open automatically in the event of power failure
- Combined throughput of up to 165 people per minute across three lanes
Technical Specifications:
- Material: Aluminium alloy or stainless steel 304/316
- Arm Material: Transparent Plexiglas
- Dimensions (each core unit): 1500 × 126 × 980 mm
- Weight: 80 kg per core
- Passage Width: 600 mm standard (up to 1200 mm available)
- Arm Height: 900 mm (optional up to 1800 mm)
- Direction: Single or bi-directional per lane
- MCBF: 15 million cycles
- Power Supply: AC220V/110V, 50/60Hz | 24V DC
- Power Consumption: 40W per unit
- Operating Temperature: -20°C to +75°C
- Humidity Tolerance: Up to 95% (non-condensing)
- Ingress Protection: IP65
- Communication: RS485, dry contact, relay signal

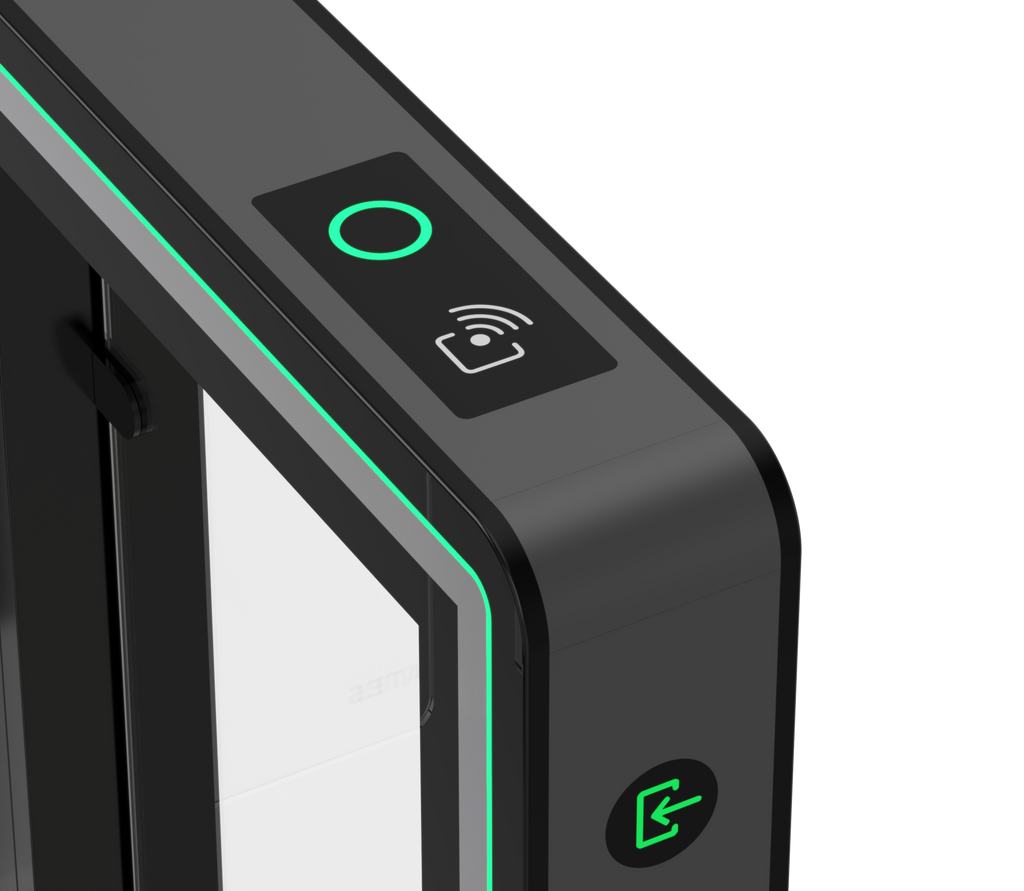

- Reader Support: Built-in card reader mounting under top panel
- Installation: Suitable for indoor or sheltered outdoor environments
Datasheets
Click here to download product datasheet
